No sound on my custom STM32F401RET6 arcade board

I have created my own MS Arcade board based on STM32F401RET6 and everything works fine except the sound. I can’t find how to make the sound works. Current there is no sound from the board but some sample games are still working well without it.

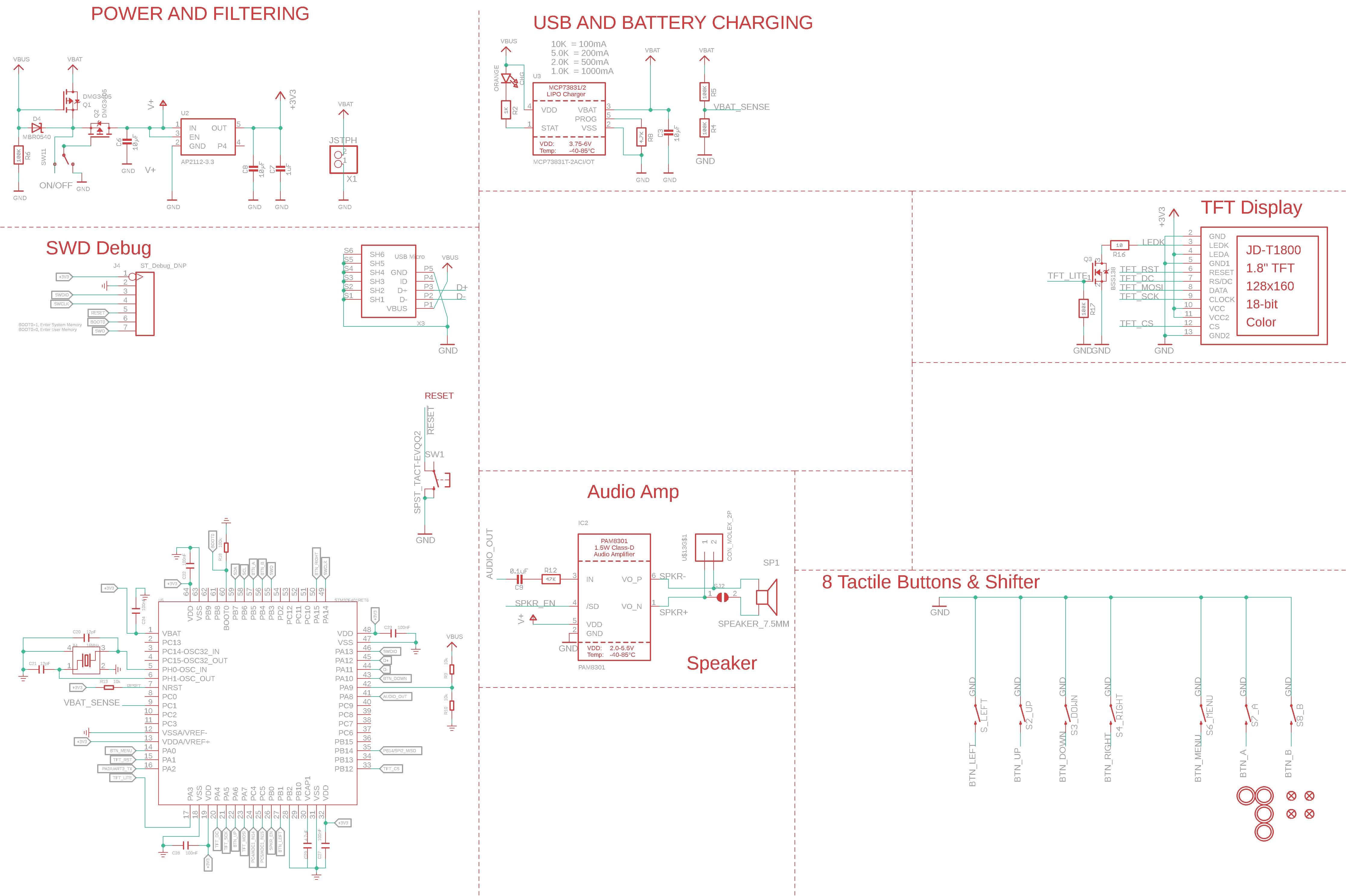

Here is schematics of the board:

Here is my CF file, the pin for speaker is correctly set as PA08

#ifndef BOARD_H

#define BOARD_H

#include "../../pins.h"

#define OSC_FREQ 16

#define USBDEVICESTRING "GameKit"

#define USBMFGSTRING "OhStem"

#define BOARD_FLASH_SECTORS 8

#define BOARD_FLASH_SIZE (512 * 1024)

#define BOARD_ID "GAMEKIT"

#ifdef DEFINE_CONFIGDATA

__attribute__((section(".config"))) __attribute__((used)) //

const uint32_t configData[] = {

    /* CF2 START */

    513675505, 539130489, // magic

    51, 100,  // used entries, total entries

    //1, 0x2e, // PIN_ACCELEROMETER_INT = PC14

    //2, 0x16, // PIN_ACCELEROMETER_SCL = PIN_D6

    //3, 0x17, // PIN_ACCELEROMETER_SDA = PIN_D7

    4, 0x15, // PIN_BTN_A = PB05

    5, 0x14, // PIN_BTN_B = PB04

    //9, 0x11, // PIN_FLASH_CS = PB_1

    //13, 0x10, // PIN_LED = PB0

    //14, 0x10, // PIN_LIGHT PB0

    24, 0x16, // PIN_SCL

    25, 0x17, // PIN_SDA

    26, 0x10, // PIN_SPEAKER_AMP = PB00

    27, 0x25, // TEMPERATURE = PC5

    32, 0x05, // PIN_DISPLAY_SCK = PA05

    //33, 0x1e, // PIN_DISPLAY_MISO = PA14

    34, 0x07, // PIN_DISPLAY_MOSI = PA07

    35, 0x1c, // PIN_DISPLAY_CS = PB12

    36, 0x04, // PIN_DISPLAY_DC = PA04

    37, 0xa0, // DISPLAY_WIDTH = 160

    38, 0x80, // DISPLAY_HEIGHT = 128

    //39, 0x40, // DISPLAY_CFG0 = 0x40

    39, 0x00000090 , // DISPLAY_CFG0 = 0x40

    //40, 0x603, // DISPLAY_CFG1 = 0x603

    40, 0x000e14ff, // DISPLAY_CFG1 = 0x603

    41, 0x16, // DISPLAY_CFG2 = 0x16

    43, 0x01, // PIN_DISPLAY_RST = PA01

    44, 0x03, // PIN_DISPLAY_BL = PA03

    //45, 0x1, // PIN_SERVO_1 = PA01

    //46, 0x0, // PIN_SERVO_2 = PA00

    47, 0x11, // PIN_BTN_LEFT = PB01

    48, 0x0F, // PIN_BTN_RIGHT = PA15

    49, 0x06, // PIN_BTN_UP = PA_6

    50, 0x0A, // PIN_BTN_DOWN = PA10

    51, 0x00, // PIN_BTN_MENU = PA0

    //55, 0x15, // PIN_LED1 = PC08 PB5

    59, 128, // speaker volume

    60, 0x9, // PIN_JACK_TX = PA09

    //61, 0x6, // PIN_JACK_SENSE = PA06

    //62, 0x4, // PIN_JACK_HPEN = PA04

    // 63, 0x18, // PIN_JACK_BZEN = PA10 PB8

    64, 0x13, // PIN_JACK_PWREN = PB13

    65, 0x8, // PIN_JACK_SND = PA08

    // 66, 0x28, // PIN_JACK_BUSLED = PC08

    // 67, 0x29, // PIN_JACK_COMMLED = PC09

    //70, 0x68, // ACCELEROMETER_TYPE = MPU6050

    //103, 0x10, // PIN_A3 PB0

    100, 0x00, // PIN_A0 PA0

    104, 0x20, // PIN_A4 PC0

    154, 0x15, // PIN_D4 PB5  LED act

    159, 0x27, // PIN_D9 PC7

    152, 0x0A, // PIN_D2 PA10

    101, 0x01, // PIN_A1 PA1

    102, 0x04, // PIN_A2 PA4

    // U6 tx

    105, 0x20, // PIN_A5 PC0

    153, 0x26, // PIN_D3 PC6

    150, 0x03, // PIN_D0 PA3

    151, 0x02, // PIN_D1 PA2

    // external spi

    23, 0x2A, // PIN_SCK PC10

    18, 0x2B, // PIN_MISO PC11

    19, 0x2C, // PIN_MOSI PC12

    163, 0x0F, // PIN_SS, PIN_D13 PA_15

    165, 0x28, // PIN_SS, PIN_D15 PC8, SD slot in spi mode

    204, 0x80000, // FLASH_BYTES = 0x80000

    205, 0x18000, // RAM_BYTES = 0x18000

    //208, 0x16e42d61, // BOOTLOADER_BOARD_ID = 0x16e42d61

    208, 0x77c8b2ac, // BOOTLOADER_BOARD_ID = 0x77c8b2ac

    209, 0x57755a57, // UF2_FAMILY = STM32F401

    210, 0x10, // PINS_PORT_SIZE = PA_16

    0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

    0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

    /* CF2 END */

};

#endif

#ifdef DEFINE_CUSTOM_LOGO

const uint8_t kittenLogo[] = {

32, 32, 68, 191, 191, 191, 142, 63, 149, 208, 143, 63, 124, 31, 140, 15, 124, 31, 139, 79, 124, 63, 140, 47, 126, 63, 64, 115, 113, 202, 135, 125, 211, 135, 113, 125, 203, 138, 7, 207, 138, 7, 207, 136, 79, 120, 202, 135, 63, 121, 203, 137, 31, 208, 139,

213, 142, 209, 146, 206, 147, 205, 148, 203, 150, 201, 152, 199, 191, 191, 169

};

static void customLogo() {

    printicon(2, 5, 15, kittenLogo);

    print(35, 25, 1, "GameKit Starter");

    print(10, 40, 1, "by OhStem team");

}

#define CUSTOM_LOGO customLogo()

#endif

#endif /* BOARD_H */

And also the bootloader screen is a blank white, instead of showing device name.

Can anyone help to point me where the problem is? Highly appreciate your help.

1 Like

Holy cow! This is impressive! I don’t know how to fix it since I haven’t played around with hardware. Hope you figure it out! :slight_smile:

Nice hardware!

Oh, and welcome to the Forum!

You should format your code by placing it in between 3 backticks (`)

Like this:
```c
// C code
```
And it will appear like this:

// C code

Like this:

#ifndef BOARD_H

#define BOARD_H

#include “…/…/pins.h”

#define OSC_FREQ 16

#define USBDEVICESTRING “GameKit”

#define USBMFGSTRING “OhStem”

#define BOARD_FLASH_SECTORS 8

#define BOARD_FLASH_SIZE (512 * 1024)

#define BOARD_ID “GAMEKIT”

#ifdef DEFINE_CONFIGDATA

attribute((section(".config"))) attribute((used)) //

const uint32_t configData[] = {

/* CF2 START */

513675505, 539130489, // magic

51, 100,  // used entries, total entries

//1, 0x2e, // PIN_ACCELEROMETER_INT = PC14

//2, 0x16, // PIN_ACCELEROMETER_SCL = PIN_D6

//3, 0x17, // PIN_ACCELEROMETER_SDA = PIN_D7

4, 0x15, // PIN_BTN_A = PB05

5, 0x14, // PIN_BTN_B = PB04

//9, 0x11, // PIN_FLASH_CS = PB_1

//13, 0x10, // PIN_LED = PB0

//14, 0x10, // PIN_LIGHT PB0

24, 0x16, // PIN_SCL

25, 0x17, // PIN_SDA

26, 0x10, // PIN_SPEAKER_AMP = PB00

27, 0x25, // TEMPERATURE = PC5

32, 0x05, // PIN_DISPLAY_SCK = PA05

//33, 0x1e, // PIN_DISPLAY_MISO = PA14

34, 0x07, // PIN_DISPLAY_MOSI = PA07

35, 0x1c, // PIN_DISPLAY_CS = PB12

36, 0x04, // PIN_DISPLAY_DC = PA04

37, 0xa0, // DISPLAY_WIDTH = 160

38, 0x80, // DISPLAY_HEIGHT = 128

//39, 0x40, // DISPLAY_CFG0 = 0x40

39, 0x00000090 , // DISPLAY_CFG0 = 0x40

//40, 0x603, // DISPLAY_CFG1 = 0x603

40, 0x000e14ff, // DISPLAY_CFG1 = 0x603

41, 0x16, // DISPLAY_CFG2 = 0x16

43, 0x01, // PIN_DISPLAY_RST = PA01

44, 0x03, // PIN_DISPLAY_BL = PA03

//45, 0x1, // PIN_SERVO_1 = PA01

//46, 0x0, // PIN_SERVO_2 = PA00

47, 0x11, // PIN_BTN_LEFT = PB01

48, 0x0F, // PIN_BTN_RIGHT = PA15

49, 0x06, // PIN_BTN_UP = PA_6

50, 0x0A, // PIN_BTN_DOWN = PA10

51, 0x00, // PIN_BTN_MENU = PA0

//55, 0x15, // PIN_LED1 = PC08 PB5

59, 128, // speaker volume

60, 0x9, // PIN_JACK_TX = PA09

//61, 0x6, // PIN_JACK_SENSE = PA06

//62, 0x4, // PIN_JACK_HPEN = PA04

// 63, 0x18, // PIN_JACK_BZEN = PA10 PB8

64, 0x13, // PIN_JACK_PWREN = PB13

65, 0x8, // PIN_JACK_SND = PA08

// 66, 0x28, // PIN_JACK_BUSLED = PC08

// 67, 0x29, // PIN_JACK_COMMLED = PC09

//70, 0x68, // ACCELEROMETER_TYPE = MPU6050

//103, 0x10, // PIN_A3 PB0

100, 0x00, // PIN_A0 PA0

104, 0x20, // PIN_A4 PC0

154, 0x15, // PIN_D4 PB5  LED act

159, 0x27, // PIN_D9 PC7

152, 0x0A, // PIN_D2 PA10

101, 0x01, // PIN_A1 PA1

102, 0x04, // PIN_A2 PA4

// U6 tx

105, 0x20, // PIN_A5 PC0

153, 0x26, // PIN_D3 PC6

150, 0x03, // PIN_D0 PA3

151, 0x02, // PIN_D1 PA2

// external spi

23, 0x2A, // PIN_SCK PC10

18, 0x2B, // PIN_MISO PC11

19, 0x2C, // PIN_MOSI PC12

163, 0x0F, // PIN_SS, PIN_D13 PA_15

165, 0x28, // PIN_SS, PIN_D15 PC8, SD slot in spi mode

204, 0x80000, // FLASH_BYTES = 0x80000

205, 0x18000, // RAM_BYTES = 0x18000

//208, 0x16e42d61, // BOOTLOADER_BOARD_ID = 0x16e42d61

208, 0x77c8b2ac, // BOOTLOADER_BOARD_ID = 0x77c8b2ac

209, 0x57755a57, // UF2_FAMILY = STM32F401

210, 0x10, // PINS_PORT_SIZE = PA_16

0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

/* CF2 END */
};

#endif

#ifdef DEFINE_CUSTOM_LOGO

const uint8_t kittenLogo[] = {

32, 32, 68, 191, 191, 191, 142, 63, 149, 208, 143, 63, 124, 31, 140, 15, 124, 31, 139, 79, 124, 63, 140, 47, 126, 63, 64, 115, 113, 202, 135, 125, 211, 135, 113, 125, 203, 138, 7, 207, 138, 7, 207, 136, 79, 120, 202, 135, 63, 121, 203, 137, 31, 208, 139,

213, 142, 209, 146, 206, 147, 205, 148, 203, 150, 201, 152, 199, 191, 191, 169

};

static void customLogo() {

printicon(2, 5, 15, kittenLogo);

print(35, 25, 1, "GameKit Starter");

print(10, 40, 1, "by OhStem team");
}

#define CUSTOM_LOGO customLogo()

#endif

#endif /* BOARD_H */

@UnsignedArduino I did not know that and have updated accordingly. Thanks a lot for your tip.
