Hi
Total newbie here :). I bought a microbit for my 9yo son and am now in the situation where I need to help him and know next to nothing about electronics
We’ve got this set (ELECFREAKS microbit Starter Kit for Kid Micro:bit Accessories Basic Coding Electronics Kit, STEM Educational DIY Experiment Kit, Electric Circuit Learning with Guidance Manual(Without Micro: bit) https://amzn.eu/d/67Hcm0E)

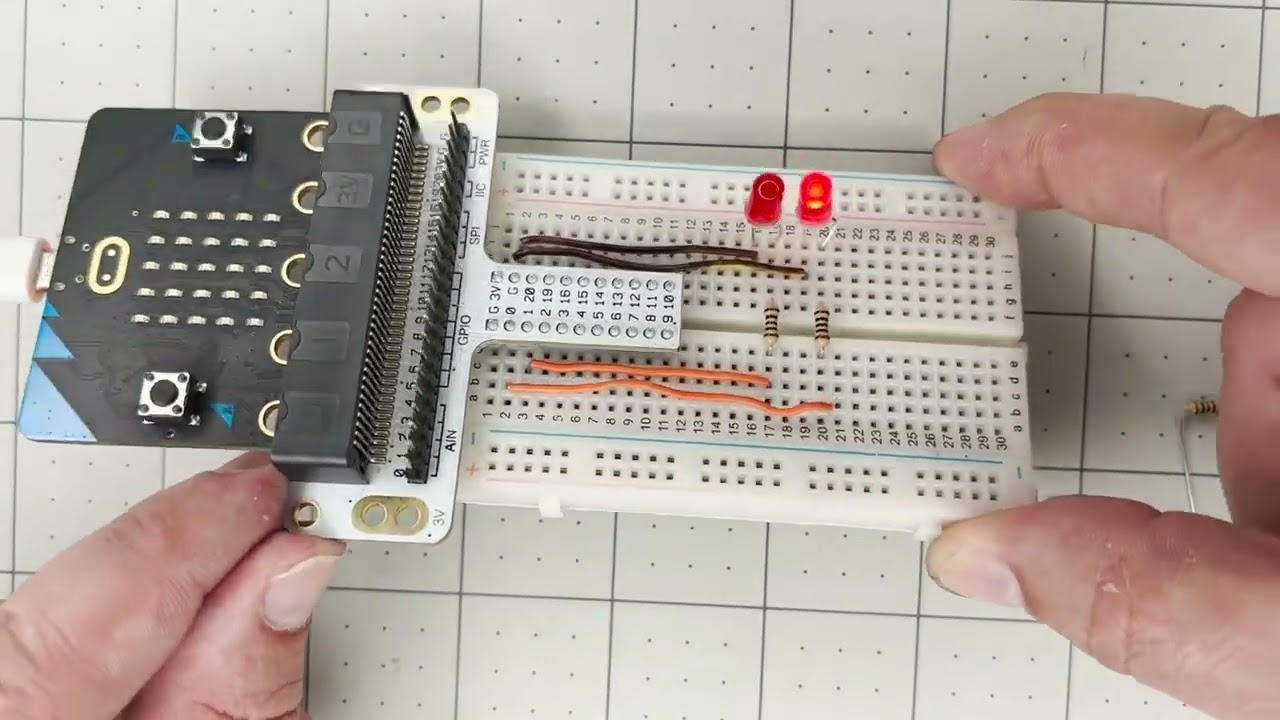

. …which lets us hook up the microbit to a breadboard, and have successfully managed to turn 2 leds on and off. This uses the P0 and P1 inputs off the interface between microbit and breadboard.
Now… we’re also using Tinkercad to try and simulate this and other projects before we build, however - as Tinkercad doesn’t have the interface to the breadboard that we’re using and instead links directly to it, we’re a little unsure how to access those P0 and P1 on the breadboard (we’re using the digital write pin in the code)
If we use the digital write pin P0 for example - what does that link to on the breadboard?
I hope that makes some sense
Thanks for any help you can give!
Nick
